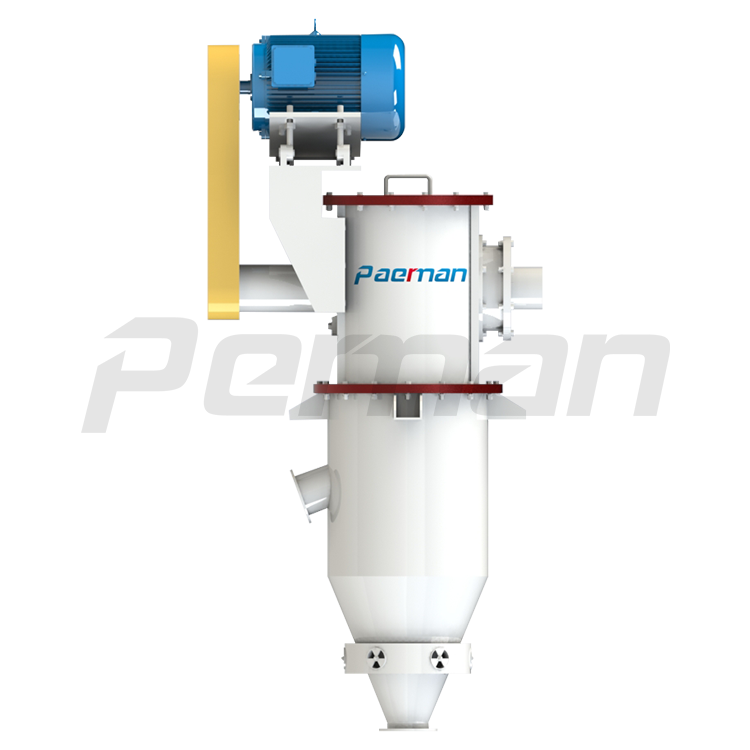

FL/W air classifier

custom

150-9515-2877/400-858-01137*24 hours hotline

Guide installation

Chauffeur pick-up

After-sales service

Product Introduction

Perman new generation of air classifier is divided into vertical and horizontal according to the different materials, and is divided into single rotor or multiple rotors according to the capacity. Through independent research and development technology, it has developed a new classification equipment that can grade different fine powder finness. In the technical use of direct motor or shaft sleeve belt drive impeller classification system, can adapt to the frequency converter to achieve stepless speed regulation, adapt to various fine dust adjustment, high degree of automation. The new generation of single-wheel classifier has the advantages of compact structure, small occupation area, and strong applicability. It can be flexibly used in series with a variety of equipment (modifying machine, spheroidizing machine, pressing mill, vertical mill, impact mill, etc.) to form a closed circuit system.

Scope of use

It is suitable for all kinds of mill equipment (air mill, ring roller mill, Raymond mill, etc.) to form a closed circuit system to realize the secondary classification of fine powder particles.

The fineness of the new generation of single-wheel classifier can reach 4000-5000 mesh.

Product features

01High degree of adjustment. By controlling the fineness of the classification with variable frequency motor, the classification system can be adjusted according to different needs to obtain the target product.
02The vertical classification impeller is made of wear-resistant material, with high precision, stable transmission and long service life.
03The secondary air inlet system adopts the electronically controlled air valve system, which realizes the precise control of the air inlet volume and has a high degree of automation.
04High Grading efficiency. The materials pass through the high-speed rotating Grading wheel and the swirling flow generated by the secondary air inlet, further separating the mixed or adhering particles from the coarse particles, improving the Grading efficiency and grading accuracy.
05Automatic PLC control system, simple operation, centralized control, remote diagnosis and other automation, intelligentize docking.

attachment

Process flow chart

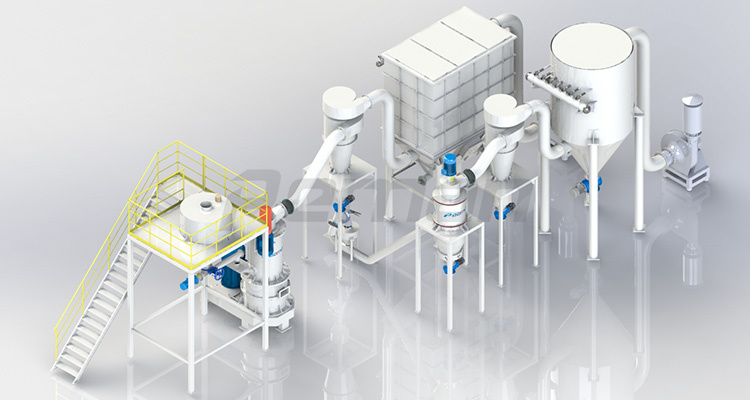

氣流分級機系統流程圖2

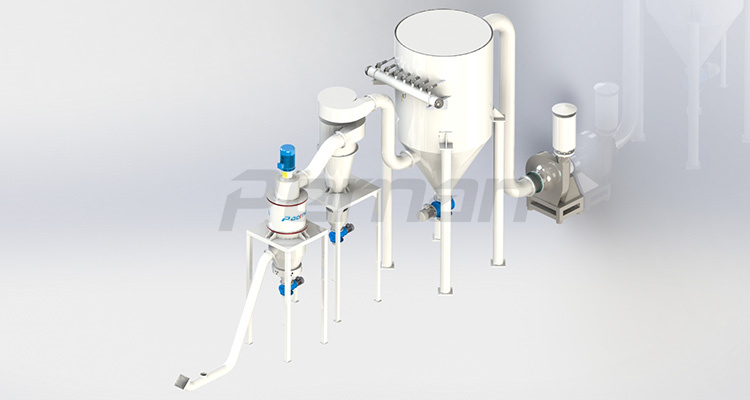

超細機械粉碎機+氣流分級機系統流程圖2

Technical parameter

Parameter/Model	FL300	FL360	FL450	FL500	FL600	FL800	FL1000	FL1200
Processing capacity kg/h	200-1000	300-2000	1000-3000	3000-5000	5000-8000	8000-15000	15000-20000	20000-30000
Product particle size d97: μm	5-150	5-150	5-150	8-150	8-150	10-150	15-150	20-150
Grading efficiency	60-90	60-90	60-90	60-90	60-90	60-90	60-90	60-90
Installed power KW	11.5-42.5	18-60	63.5-105	77-120	77-140	120-160	90-200	170-310

Parameter/Model	FW200	FW280	FW400	FL520	FL630	FL800	FL800	FL800
Processing capacity kg/h	10-100	20-200	50-500	100-1000	200-2500	400-4000	400-4000	400-4000
Product particle size d97: μm	3-45	3-45	3-45	3-45	3-45	3-45	3-45	3-45
Grading efficiency	60-80	60-80	60-80	60-80	60-80	60-80	60-80	60-80
Installed power KW	7-11	15-19	21-28	23-30	52-60	67-77	67-77	67-77
